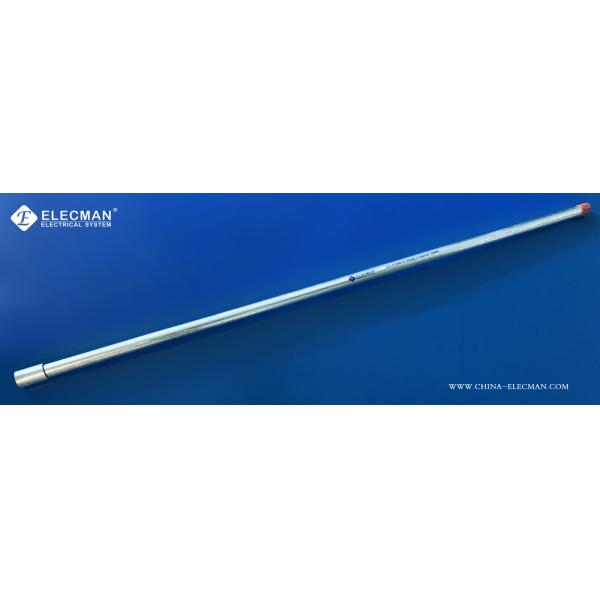

ELECMAN ® 32mm IEC 61386 Hot Dipped Galvanized Rigid Metallic Tube Rigid Conduit
Applications
ELECMAN® 32mm Galvanized Rigid Steel Conduit provides a damage-resistant duct for electrical conductors and cables. This conduit shields internal wires from magnetic fields and features electroplated couplings to resist buildup of zinc on the threads. Galvanized IEC Rigid Steel Conduit is hot-dip galvanized for corrosion resistance and is considered non-combustible.
Features
- IEC standard for Electrical Metallic tubing - steel.
- International Electrotechnical Commission ( IEC ).
- Manufactured in accordance with IEC 61386-21.
- Protect insulated electrical conductors and cables.
- Designed for use with threaded connections.
- The outside is galvanized for corrosion protection and the inside has an approved corrosion-resistant organic coating.
Certifications and Compliances
ELECMAN® IEC 61386 carbon steel Rigid metallic conduit(IEC Rigid conduit) shall be carbon steel, electrically welded, galvanized and produced to the following specifications:
- SEC standard for rigid metallic tube - steel.
- International Electrotechnical Commission -IEC 61386 ( conduit systems for cable management ).
- Party 21:Particular requirements - Rigid conduit systems.
- Threaded ends ( METRIC ) - IE 60423.
Specification Data
ELECMAN ® IEC 61386 carbon steel Rigid metallic conduit(IEC Rigid conduit) is listed to Chile SEC Safety Standard and manufactured in accordance with IEC 61386 - 21. details shall accord with following table. ELECMAN provides full size IEC 61386 Rigid metallic conduit from 20mm to 110mm.
| CAT # | Trade size | O.D. | Thickness | Length |
| mm | mm | m |
| RGD20 | 20mm | 20 | 2.50 | 3 |
| RGD25 | 25mm | 25 | 2.50 | 3 |
| RGD32 | 32mm | 32 | 3.00 | 3 |
| RGD40 | 40mm | 40 | 3.25 | 3 |
| RGD50 | 50mm | 50 | 3.25 | 3 |
| RGD63 | 63mm | 63 | 3.50 | 3 |
| RGD75 | 75mm | 75 | 3.50 | 3 |
| RGD90 | 90mm | 90 | 4.50 | 3 |
| RGD110 | 110mm | 110 | 4.50 | 3 |
Quality Control

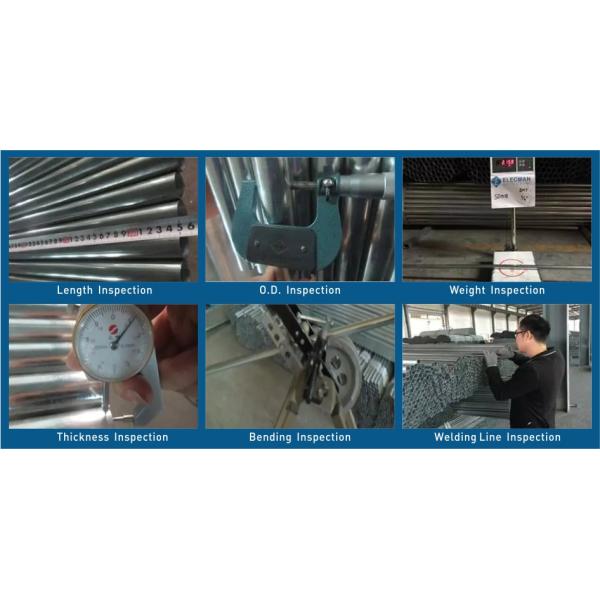

Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard for IEC 61386 carbon steel Rigid metallic conduit(IEC Rigid conduit). QC department need to inspect the dimensions, welding line, zinc coatings and bending feature.
Packing Information
IEC 61386 carbon steel Rigid metallic conduit(IEC Rigid conduit) are packed in bundles with woven bag, we also can put customers' sticker on pipes, on woven bag, we will put a big sticker with detailed information for customers to distinguish different sizes.
